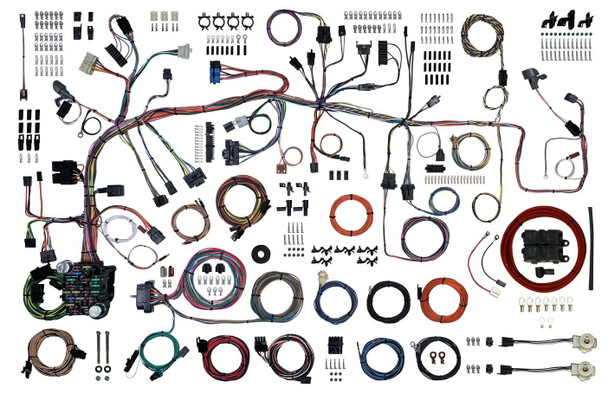

American Autowire 510742 Classic Update Wiring Harness for 87-90 Jeep Wrangler YJ

(No reviews yet) Write a Review
MPN:
510742
Shipping:
Calculated at Checkout
$1,379.00

Description

Description
Learn More
Specs
Fitment

    Features:

  • Standard turn signal flasher, hazard flasher, and horn relay mounted on harness.
  • Stock wiper/washer switch and motor connections.
  • Steering column connectors that plug directly into the stock '87-'90 Jeep columns and most aftermarket columns using the adapter and terminals included in the kit.
  • Separate under dash courtesy lamp assemblies are included for use along with your original dome/interior lighting feeds. Instrument cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. New original style terminals and factory printed circuit board connector for use with stock clusters: an American Autowire exclusive! The system will also connect into most popular aftermarket gauges.
  • Factory-correct indicator and warning lamp cluster connectors: another American Autowire exclusive!
  • New factory tach connector and leads.
  • New factory heater switch and blower resistor connectors and leads.
  • New factory-style tail, back-up and side marker lamp (weather-pack) connectors that attach to the factory rear lamps. New fuel tank sender, fuel pump and ground leads that plug directly into the tank sender, along with a new body pass-through.
  • New column dimmer switch connector and leads.
  • New factory fog lamp switch body connector and control relays.
  • New factory-exact headlight switch and instrument panel dimmer switch connectors and leads are provided.
  • Engine wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, 4WD electro-vacuum switch, starter relay and solenoid feeds, under hood lamp feed, alternator exciter feed, neutral safety and back up feeds, heater blower feed, A/C compressor and low pressure switch feeds, and a power accessory feed. A high-powered 6 gauge 1-wire alternator connection with Mega-Fuse protection is supplied.
  • Front lighting includes extra-long leads that can be routed for stock or custom applications. Head light, parking / directional light, side marker light pigtails, fog lamp wiring, and windshield washer pump connections are included. A switched trigger wire for an electric fan relay is provided.
  • New door jamb switch leads that will plug into your factory door jamb switches included.
Installation Notes
Installation Difficulty:
Skill Level 2 IconLevel 2Intermediate
The following add-on kits can be special ordered at an additional cost: 510807 - 1990 Jeep YJ rear wiper/washer harness 510797 - 1987-90 Jeep YJ rear defroster harness 510824 - 1987-90 Jeep Dura-spark ignition harness10014885 - 1987-90 Jeep YJ rear defroster timer/relay
Installation Time: 4-6 hours
Parts Included
  • Classic Update Wiring System
Warranty
1-Year (manufacturing defects) Warranty
  • Shipping Weight: 20lb
  • Shipping Dimensions: 20in x 14in x 6in (L x W x H)
  • Jeep Wrangler (YJ)

  • 1990 Jeep Wrangler (YJ)
  • 1989 Jeep Wrangler (YJ)
  • 1988 Jeep Wrangler (YJ)
  • 1987 Jeep Wrangler (YJ)
