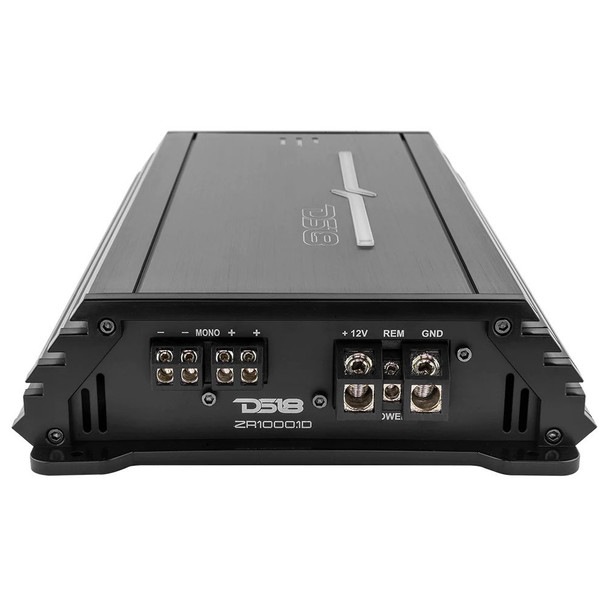

DS18 ZR Series Class D 1-Channel Monoblock Amplifier

POWER

• Total Watts (Peak): 3000W
• RMS Power @ 4 ohm: 380W
• RMS Power @ 2 ohm: 650W
• RMS Power @ 1 ohm: 1000W

AUDIO

• Frequency Response: 10-220Hz
• Signal to Noise Ratio: >95dB
• Efficiency @ 4ohm: 80%
• Damping Factor: 220
• Input Impedance: 20K ohm
• Channel Separation: N/A
• Total Harmonic Distortion (THD): 0.01%
• Low Level Input Range: 0.2-6V
• High Level Input: No
• Selectable X-Over: LPF Fixed
• X-Over Filter Range: 40-180Hz
• Bass Boost Range: 0-12db
• Bass Boost Frequency: 30-80hz
• Infrasonic Filter: 10-50hz
• Phase Selector: No

FEATURES

• Amplifier Class: Digital
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1
• Minimum Impedance: 1 ohm
• Led Indicator: clipping/protect/power
• Power Input Terminal Size: 4ga
• Fuse Size: 100A
• Remote Level Control: Yes / Dash Mount
• Cooling Fan: No
• Voltmeter: No
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes <9 / >16 Volts
• Clipping Protection : Yes
• Body Color / Finish: Black Aluminum Brush

MEASUREMENT

• Overall Length: 11.8" / 301mm
• Overall Wide: 7.24" / 184mm
• Overall Height: 2" / 53mm
• Heatsink Length: 10.47" / 266mm
• Gross Single Unit Weight: 5.8Lb

POWER:

• Total Watts (Peak): 4500W
• RMS Power @ 4 ohm: 550W
• RMS Power @ 2 ohm: 950W
• RMS Power @ 1 ohm: 1500W

AUDIO:

• Frequency Response: 10-220Hz
• Signal to Noise Ratio: >95dB
• Efficiency @ 4ohm: 85%
• Damping Factor: 220
• Input Impedance: 20K ohm
• Total Harmonic Distortion (THD): 0.01%
• Low Level Input Range: 0.2-6V
• High Level Input: No
• Selectable X-Over: LPF Fixed
• X-Over Filter Range: 40-180Hz
• Bass Boost Range: 0-12dB
• Bass Boost Frequency: 30-80Hz
• Infrasonic Filter: 10-50Hz
• Phase Selector: No

FEATURES:

• Amplifier Class: Digital
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1
• Minimum Impedance: 1 ohm
• Led Indicator: clipping/protect/power
• Power Input Terminal Size: 4ga
• Fuse Size: 160A
• Remote Level Control: Yes / Dash Mount
• Cooling Fan: No
• Voltmeter: No
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes <9 / >16 Volts
• Clipping Protection : Yes
• Body Color / Finish: Black Aluminum Brush

MEASUREMENT:

• Overall Length: 14.8" / 376mm
• Overall Wide: 7.24" / 184mm
• Overall Height: 2" / 53mm
• Heatsink Length: 13.4" / 341mm
• Gross Single Unit Weight: 7Lb

POWER:

• Total Watts (Peak): 6000W
• RMS Power @ 4 ohm: 800W
• RMS Power @ 2 ohm: 1300W
• RMS Power @ 1 ohm: 2000W

AUDIO:

• Frequency Response: 10-220Hz
• Signal to Noise Ratio: >95dB
• Efficiency @ 4ohm: 80%
• Damping Factor: 220
• Input Impedance: 20K ohm
• Total Harmonic Distortion (THD): 0.01%
• Low Level Input Range: 0.2-6V
• High Level Input: Yes
• Selectable X-Over: LPF Fixed
• X-Over Filter Range: 40-180Hz
• Bass Boost Range: 0-12dB
• Bass Boost Frequency: 30-80Hz
• Infrasonic Filter: 10-50Hz
• Phase Selector: No

FEATURES:

• Amplifier Class: Digital
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1
• Minimum Impedance: 1 ohm
• Led Indicator: clipping/protect/power
• Power Input Terminal Size: 0ga
• Fuse Size: 200A
• Remote Level Control: Yes / Dash Mount
• Cooling Fan: No
• Voltmeter: No
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes <9 / >16 Volts
• Clipping Protection: Yes
• Body Color / Finish: Black Aluminum Brush

MEASUREMENT:

• Overall Length: 19.13" / 486mm
• Overall Wide: 7.24" / 184mm
• Overall Height: 2" / 53mm
• Heatsink Length: 17.75" / 451mm
• Gross Single Unit Weight: 8.1Lb

Installation Notes

Installation Difficulty:

Level 2Intermediate

Installation Time: 1-2 hours

Parts Included

• Amplifier
