Description

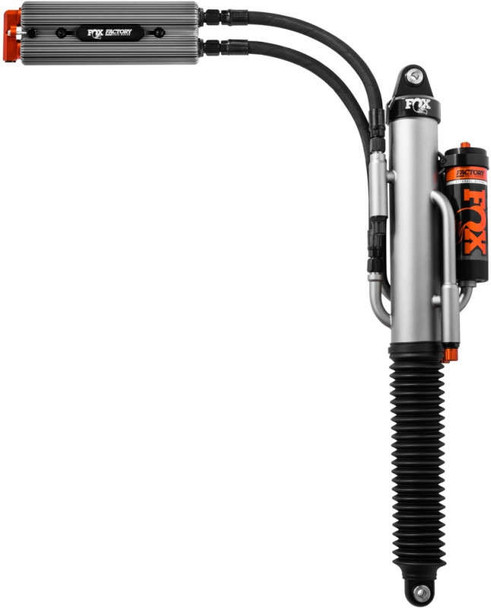

Taking inspiration from off-road racing, the Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2).
This kit delivers the next level of off-road performance without sacrificing every day ride quality.
Features
- For 0-1" Lifts
- Body: 3.0" steel body new, proprietary coating for improved durability
- Reservoir: NEW, hard anodized impact extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
- Components: Hard anodized, CNC-machined 6061-T6 billet aluminum
- Shaft: 7/8" 17-4 H900 hard chrome plated stainless steel
- Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
- Valving: Specific for Gen 2 Raptor to maximize performance and comfort
- Bearing: Spherical, PFTE-lined, heat-treated steel
- Adjustments: Quick Adjust Bypass (QAB) adjusters
- Adjuster Type: QAB - Quick Adjust Bypass
- Extended: 31.150
- Compressed: 18.880
- Travel: 12.270
- Top Mount: Eyelet
- Bottom Mount: Eyelet
