Description
Features

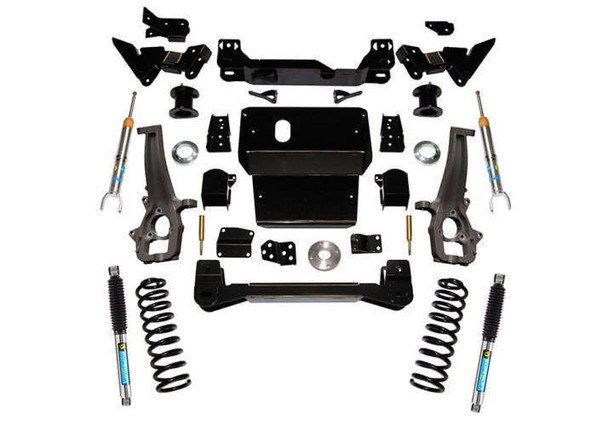

- Replacement knuckles yield best possible alignment specs. Front track width is not increased and factory turning radius is retained.
- Front lower control arm crossmembers laser cut from 3/16" material.
- Belly pan, constructed of 1/4" material, connects crossmembers and protects differential.
- Front anti-sway bar link extensions retain factory "service for life" links.
- New Superide Dual Rate rear coil springs provide ideal ride, handling and load carrying capability.
- New bracketry relocates factory rear 4-link points, anti-sway bar links, brake lines and track bar.
- New rear compression travel-stop brackets.
- Rear shock options include Superlift or Bilstein.
- Installs easily with only slight trimming and no exhaust or driveshaft modifications.
- Compatible with Dodge's Electronic Stability Program.
Install Time
9-10 hoursDifficulty level: 4 of 5
Notes
- Will not fit Short Bed Standard Cab models due to rear driveline vibration.
- The TRX factory ride height is approximately 1" taller than the standard Ram. The part # K116 is not recommended for use on the TRX models due to possible alignment issues and CV shaft vibration caused by the additional lift. Consider our 4" lift system (K1017) for about 5" of lift or the K1018B with the height adjustable Bilstein front struts. Set the snap ring in the center groove of the strut to achieve proper ride height.
