Teraflex

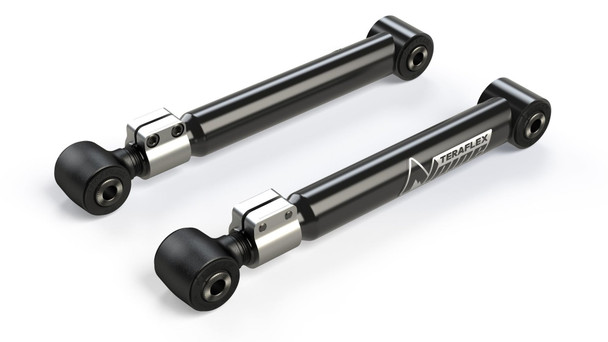

Teraflex 1417530 Rear Upper Alpine Adjustable Control Arms for 20-25 Jeep Gladiator JT with up to 4.5" Lift
- MPN:
- 1417530
- Shipping:
- Calculated at Checkout
Description
Fully Adjustable: Teraflex's Alpine Flexarms allow you to fine-tune your caster and pinion angle while re-centering the axles under your Jeep Gladiator JT. The factory style bushings are designed to reduce noise, vibration, and harshness (NVH).
Heavy Duty Construction: These control arms are made from durable Drawn Over Mandrel (DOM) tubing which is finished with a black e-dipped coating. The adjustment clamp collars are made from anodized 6061-T6 aluminum.
Front Upper Control Arm Specs:
Factory Length: 20.185"
Minimum Adjusted Length: 20"
Maximum Adjusted Length: 21"
Front Lower Control Arm Specs:
Factory Length: 24"
Minimum Adjusted Length: 24"
Maximum Adjusted Length: 25.25"
Rear Upper Control Arm Specs:
Factory Length: 16-3/8"
Minimum Adjusted Length: 16-1/8"
Maximum Adjusted Length: 17-3/8"
Rear Lower Control Arm Specs:
Factory Length: 23-3/4"
Minimum Adjusted Length: 23-1/2"
Maximum Adjusted Length: 24-3/4"
- Features: Adjustable Control Arms
- Lift Height: 0.00, 0.50, 1.00, 1.50, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50
- Lift Height Range: 0 - 4.5 inch
- Location: Rear
- Upper/Lower: Upper Control Arms
- Shipping Weight: 16lb
- Shipping Dimensions: 20in x 7in x 3in (L x W x H)
Jeep Gladiator (JT)
- 2025 Jeep Gladiator (JT)
- 2024 Jeep Gladiator (JT)
- 2023 Jeep Gladiator (JT)
- 2022 Jeep Gladiator (JT)
- 2021 Jeep Gladiator (JT)
- 2020 Jeep Gladiator (JT)
Additional Information
Features: |
Adjustable Control Arms |
Lift Height: |
0.00 |
Lift Height: |
0.50 |
Lift Height: |
1.00 |
Lift Height: |
1.50 |
Lift Height: |
2.00 |
Lift Height: |
2.50 |
Lift Height: |
3.00 |
Lift Height: |
3.50 |
Lift Height: |
4.00 |
Lift Height: |
4.50 |
Lift Height Range: |
0 - 4.5 inch |
Location: |
Rear |
Upper/Lower: |
Upper Control Arms |
