Rough Country 70959 MLC-6 Multiple Light Controller for 07-18 Jeep Wrangler JK

Vehicle Specific Design: The Rough Country MLC-6 Multiple Light Controller was engineered to work with all JK Wranglers. The under-hood relay pod fits with all factory engines, and the windshield mounted switch pod is compatible with all trim packages.

Versatile Application: Whether you want to control lights, lockers, air compressors, or any other electric accessories, the Rough Country MLC-6 Multiple Light Controller has you covered.

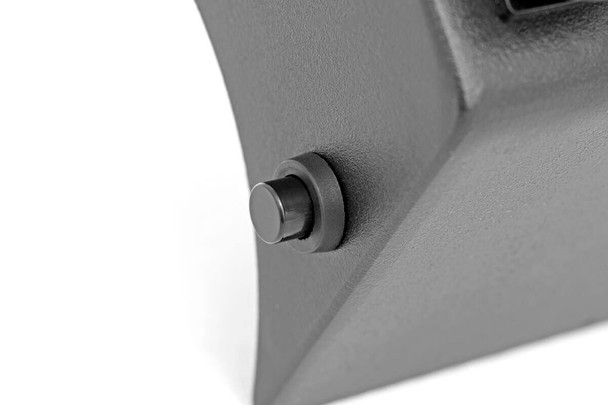

Switch Panel: The MLC-6's switch pod includes 6 rocker style switches. These switches are backlit with blue LEDs. There is a convenient button on the switch pod that can be used to turn off the backlighting.

Heavy-Duty Construction: Rough Country uses 8-gauge, high-temp, abrasion resistant cables for their power leads. For additional conductivity, the terminals are both soldered and crimped.

Low Voltage Cut Off: The Rough Country MLC-6 Multiple Light Controller features an integrated Low Voltage Cut Off (LVCO) circuit. This means the MLC-6 will automatically shut off if you are in danger of draining your battery. The circuit can be easily bypassed by removing the included fuse.

Power Distribution Block The under-hood relay pod has a 12-position terminal block for use with up to 6 independent circuits. The included mounting bracket and hardware are vehicle specific and easy to install.

Rough Country MLC-6 Multiple Light Controller Specs:

Terminal Block Positions: 12

Relays: 6 x 40-amp Cubes

Fuses: 6 x 30-amp ATO Fuses

Field Collapse Protection: 6 Diode

Inline Circuit Breaker: 50-amp Manual Reset

Installation Notes

Installation Difficulty:

Level 3Advanced

Drilling Required for Installation

Installation Time: 3-4 hours

Installation
Instructions

Parts Included

• MLC-6 Switch Pod
• Rocker Switches (Qty 6)
• Switch Pod Wiring Harness
• Switch Pod Mounting Bracket Pair
• Relay Pod
• Relay Pod Power Wire
• Relay Pod Ground Wire
• Mounting Hardware

Warranty

1 Year Electrical / 1 Year Mechanical Warranty
