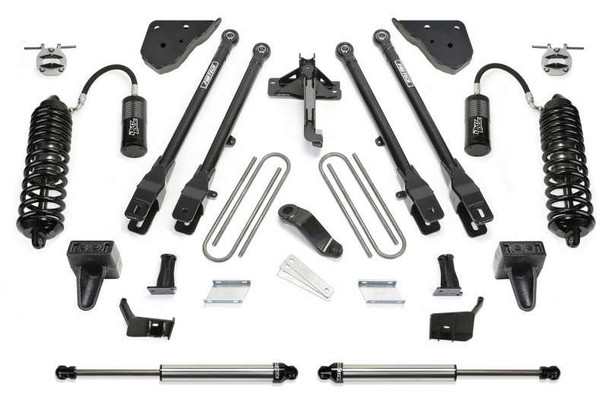

Fabtech 4" 4 Link Lift Kit | Front Dirt Logic 4.0 Resi Coilovers & Rear Dirt Logic 2.25 Shocks (2023 Ford F-250/F-350 | Diesel | 4WD) | K2411DL

(No reviews yet) Write a Review
SKU:
K2411DL
MPN:
K2411DL
Availability:
Fabtech Suspension Products In Stock | Expected Delivery Time 4-7 Days
Shipping:
Free Shipping
MSRP: $6,067.84
$5,992.84
— You save $75.00

Description

Fabtech's 4 Link lift kit for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension.

The lift kit will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link lift kit will provide more articulation than a Radius Arm for increased terrain traversing at all speeds.

This 4 Link lift kit comes complete with front Dirt Logic 4.0 resi coilovers, billet sway bar links, track bar relocation bracket, pitman arm and more. Rear lift is a block and u-bolt kit.

Fabtech's 4 Link lift kit has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems. Included is a free 5 year 60,000 mile powertrain warranty.

Each Fabtech component is expertly built in house and has specific design features and benefits.

LINK ARMS and BRACKETS
2" OD Heavy wall link arms have 1/4" thick steel brackets on the axle side with adjustable alignment cams to dial in the caster for the new ride height. Fabtech's legendary 5 Ton joints are used on the frame pivot side for superior strength. The 5 Ton joints have been proven in military use for over 10 years and come with a lifetime warranty against wearing out.

The 4 Link Arms attach to 1/4" thick steel frame brackets that integrate into the factory Radius Arm brackets for a solid mounting of the new suspension.

The geometry of the 4 Link arms and frame brackets has been designed to provide an improved highway ride due to reduced caster change and able to tackle rough offroad conditions better than a Radius Arm suspension.

DIRT LOGIC 4.0 CONVERSION
Simplistic super stout 1/4" thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4" diameter stainless steel body with 1.25" NitroSteel piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. Coil springs handle the weight of the Super Duty while providing 2" of increased wheel travel over stock. The remote aluminum reservoir dissipates heat for consistent damping when driving over extreme terrain at high speed. The ultimate of all coilover shocks.

TRACK BAR BRACKET
1/4" thick steel bracketry repositions the factory track bar to center the axle under the vehicle with the increased lift height. Super stout box style bracket is designed to eliminate deflection when the track bar moves through its full cycle.

DROPPED PITMAN ARM
Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the Ford Super Duty to work in conjunction with the factory drag link and Fabtech's Track Bar bracket for proper steering functionality.

FRONT BUMP STOP BRACKETS
Heavy duty 1/4" thick steel brackets extend the factory bump stop cushions down to eliminate over cycling of the suspension. The bracket's semi boxed construction can handle the full impact compression of the massive Super Duty.

SWAY BAR BRACKETS
1/4" thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

BRAKE LINE BRACKETS
Re-positions the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.

STEERING STABILIZER BRACKETS
Retains the stock Ford heavy duty steering stabilizer with a 1/4" thick steel bracket and support brace to help reduce tire shimmy.

REAR LIFT BLOCKS
Cast iron rear lift blocks with an integrated bump stop replaces the stock blocks for additional lift without changing the ride quality of the factory rear suspension or load carrying capacity.

REAR U-BOLTS
U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

FRONT DIRT LOGIC 4.0 RESI COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

Features

  • Fabtech Heavy Duty Link Arms
  • Front Dirt Logic 4.0 Resi Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block and U-bolt Kit
  • FRONT DIRT LOGIC 4.0 RESI COILOVER - 4.0" OD Stainless Steel Body, 3 5/8" OD Billet Aluminum Piston, 1 1/4" NitroSteel Black Piston Rod, Adjustable Coilover Construction, 3/4" Spherical Ball Mounting Ends, 4.0" OD Aluminum Resi
  • REAR DIRT LOGIC 2.25 SHOCK - 2.25" OD Stainless Steel Body, 2.0" OD Billet Aluminum Piston, 7/8" NitroSteel Black Piston Rod, Polyurethane Mounting Ends

Notes

  • Non dually models only.
  • Does not fit vehicles equipped with Ford onboard scale system.
  • 1 COMPONENT BOX 1
  • 1 COMPONENT BOX 2
  • 1 REAR BOX KIT
  • 1 FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER)
  • 1 FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER)
  • 2 REAR DIRT LOGIC 2.25 SHOCK
View AllClose

Warranty Information

Lifetime
View AllClose

Additional Information

Fitment:
2023 ford f-250 super duty king ranch 4wd diesel|2023 ford f-250 super duty lariat 4wd diesel|2023 ford f-250 super duty limited 4wd diesel|2023 ford f-250 super duty platinum 4wd diesel|2023 ford f-250 super duty xl 4wd diesel|2023 ford f-250 s
