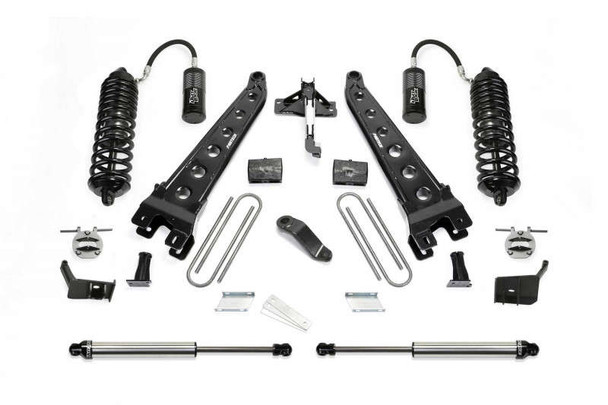

Fabtech 6" Radius Arm System W/ Front Dirt Logic 4.0 Resi Coilovers & Rear Dirt Logic 2.25 Shocks | 2017 Ford F-450 4WD | K2283DL
(No reviews yet)
Write a Review
- SKU:
- K2283DL
- MPN:
- K2283DL
- Availability:
- Fabtech Suspension Products In Stock | Expected Delivery Time 4-7 Days
- Shipping:
- Free Shipping
Description
Fabtech's 6 Radius Arm system for the Ford F450 and Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle's suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech.
This Radius Arm system is a complete upgrade to the factory suspension and will provide additional strength for use with oversized tires. The design has been proven in over 1"years of service in consumer, commercial and military applications. High quality components with properly designed suspension geometry is what sets this system apart from all other Radius Arm suspensions.
Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understand of each these components please see below.
Features
- Tubular construction with dimple die side plate for superior strength. Armsare offset to allow for full turning radius of the Dana Super 6 front axle with wide tires. Fabtech Radius Armshave 1" degree of caster built in for the increased ride height. Adjustable alignment cams on the Armsallow for an additional 1"5-2 degrees of caster adjustment.
- Each Radius Arm features Fabtech's proprietary 5 Ton Joint on the pivot side at the frame. These Jointshave been proven in rugged military use for over 1"years and are both quiet and strong.
- Simplistic super stout 1/4" thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4" diameter stainless steel body with 1"25 NitroSteel piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. coil springs handle the weight of the F450 or and provide a superior ride. The remote aluminum reservoir dissipates heat for continuous damping when driving over extreme terrain at high speed. The pinnacle of all coilover shocks.
- 1/4" thick steel bracketry re-positions the factory track bar to center the axle under the vehicle with the increased lift height. Super stout box style bracket is designed to eliminate deflection when the track bar moves through its full cycle.
- Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the F450 and to work in conjunction with the factory drag link and Fabtech's Track Bar bracket for proper steering functionality.
- Heavy duty 1/4" thick steel brackets control the travel eliminating over cycling of the suspension. Super strong construction can handle the full compression impact of the F450.
- 1/4" thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
- Re-positions the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.
- Retains the factory F450 or long travel steering stabilizer with a 1/4" thick steel bracket and support brace to help reduce tire shimmy.
- Steel rear lift blocks replaces the factory blocks for additional lift without changing the ride quality or load carrying capacity.
- U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
- Constructed of a stainless steel body with NitroSteel piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
Notes
Â- Some models may not sit level after install.
Additional Information
Fitment: |
2017 ford f-450 super duty king ranch 4wd|2017 ford f-450 super duty lariat 4wd|2017 ford f-450 super duty platinum 4wd|2017 ford f-450 super duty xlt 4wd |
Lift Height: |
6" |
Includes Shocks: |
Shocks Included |
